Dash-6.8 instrument panel

Configurable instrument panel for airboats and special-purpose vessels, combining readability, diagnostics and system status in a single marine-adapted display.

Display6.8" marine panel
ConnectivityWi‑Fi + CAN
FunctionsDiagnostics & status
Use caseAirboats & vessels

Overview

Dash-6.8 is the instrument panel of the AILUOHAI system. It reads engine data over CAN and shows it on one 6.8" screen: speed, rpm, temperatures, pressures, fuel and engine hours. A built-in GPS gives the speed, and Wi‑Fi with an onboard web server is used for setup and updates.

Main parameters

Status and alerts

Screen interface

Base interface and alerts

Scroll through the screens of Dash-6.8 — from the main view to warnings and live data.

Dash-6.8

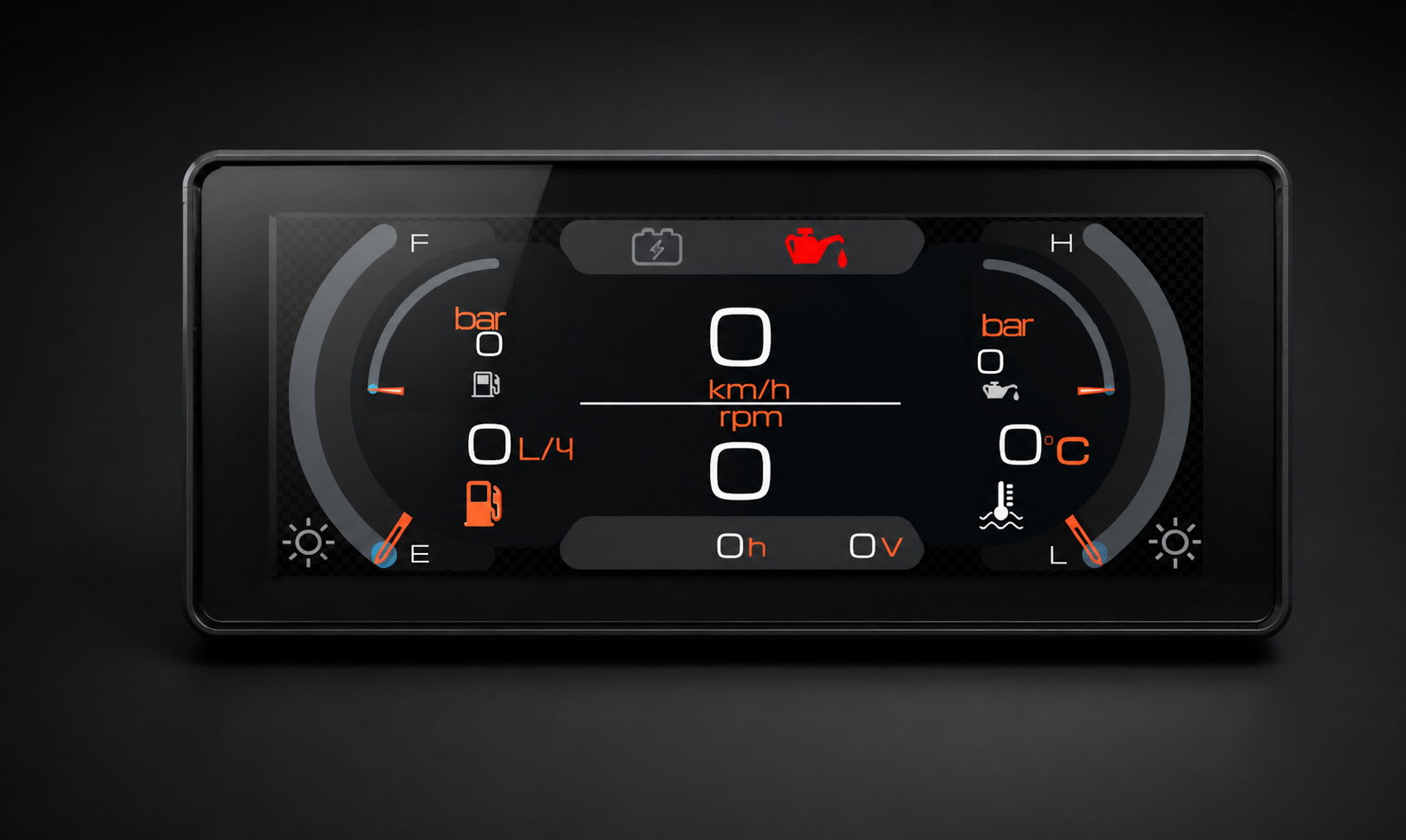

Dash-6.8 base screen with speed, rpm, consumption and temperature
01

Base interface

GPS speed and engine rpm in the centre, fuel consumption on the left, coolant temperature on the right. Fuel level and temperature on the side arcs, engine hours and onboard voltage at the bottom.

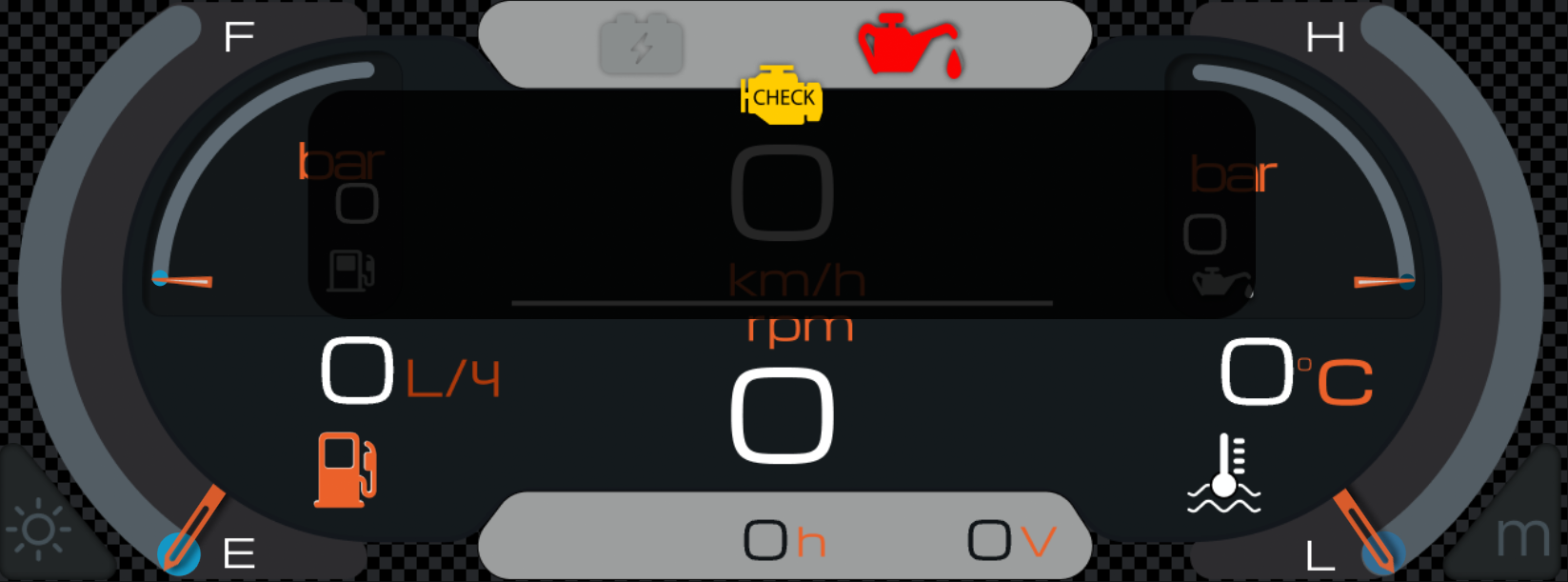

Dash-6.8 screen with the engine fault sign
02

Engine fault

When the engine control unit reports a fault, the CHECK sign appears in the centre of the screen.

Dash-6.8 screen with the red low oil pressure icon
03

Low oil pressure

The oil can icon in the top bar turns red when oil pressure drops below the limit.

Dash-6.8 screen with the orange low voltage icon
04

Low voltage

The battery icon turns orange when the onboard voltage is too low.

Dash-6.8 screen with the red overheat icon
05

Overheat

The temperature icon turns red when the engine overheats.

Dash-6.8 screen with the blue cold engine icon
06

Cold engine

The temperature icon stays blue until the engine has warmed up.

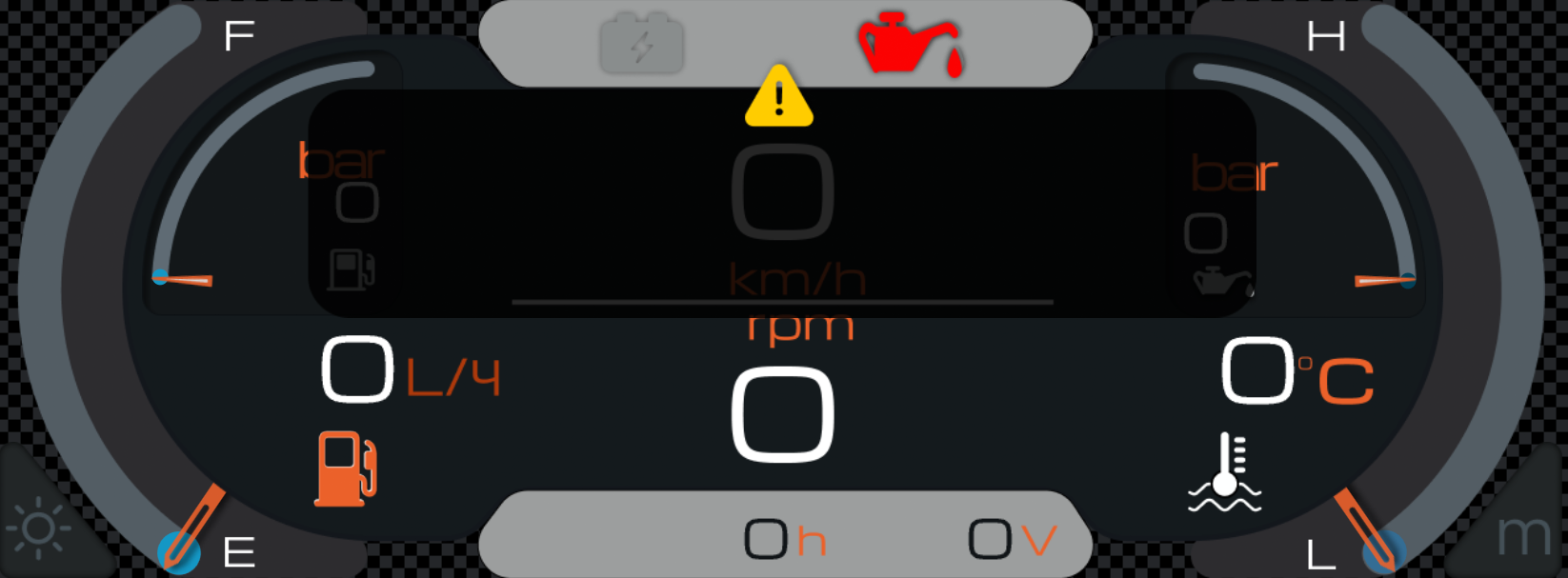

Dash-6.8 screen with a yellow warning sign
07

Warnings

Important warnings come with a yellow sign in the centre of the screen, so they are hard to miss.

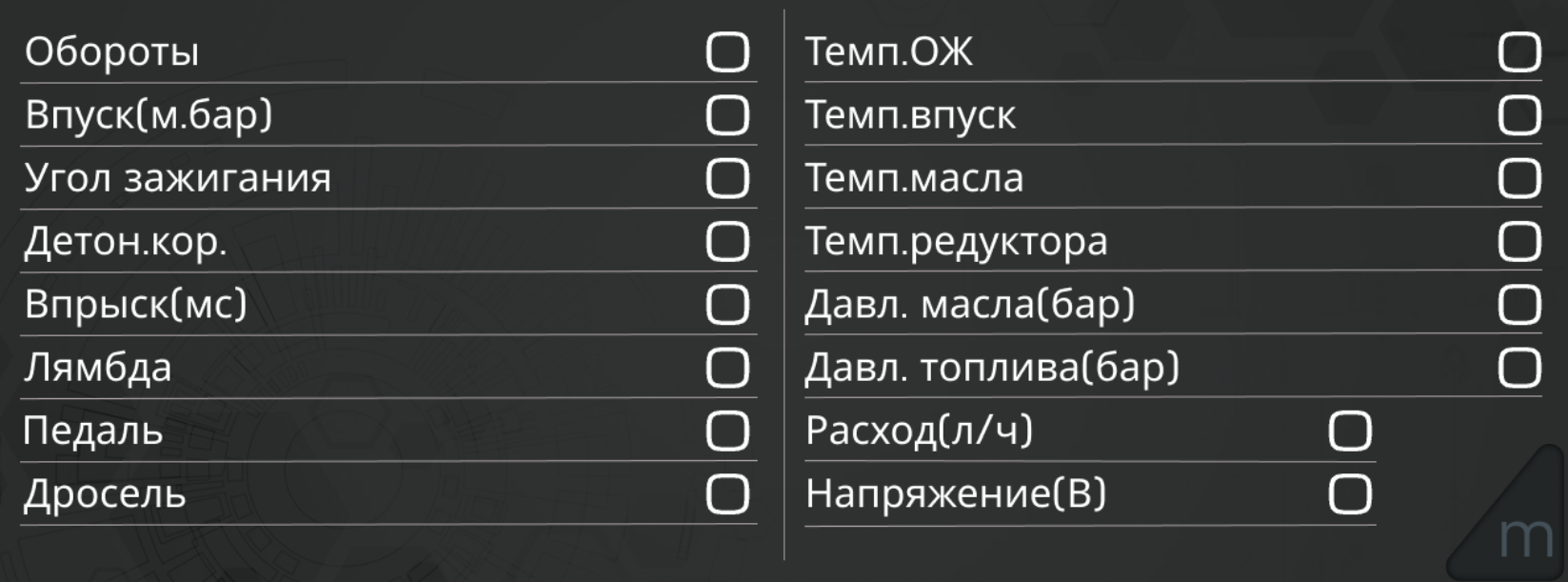

Dash-6.8 parameters screen with live engine data
08

Live engine data

A second screen with live values: rpm, intake pressure, ignition angle, knock correction, injection time, lambda, pedal and throttle, coolant, intake, oil and gearbox temperatures, oil and fuel pressure, consumption and voltage.

Construction

Enclosure

How the panel is built for water, vibration and cold.

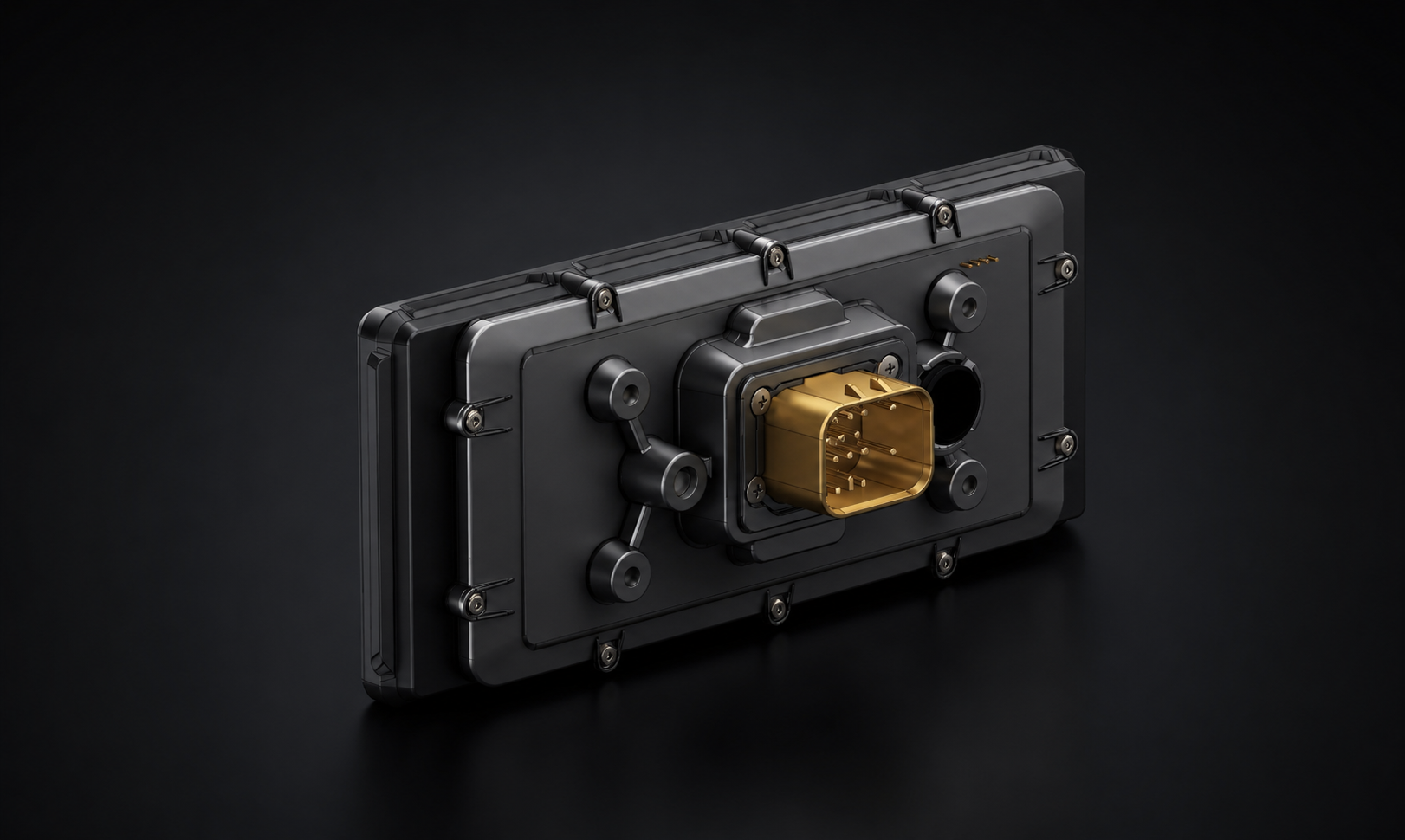

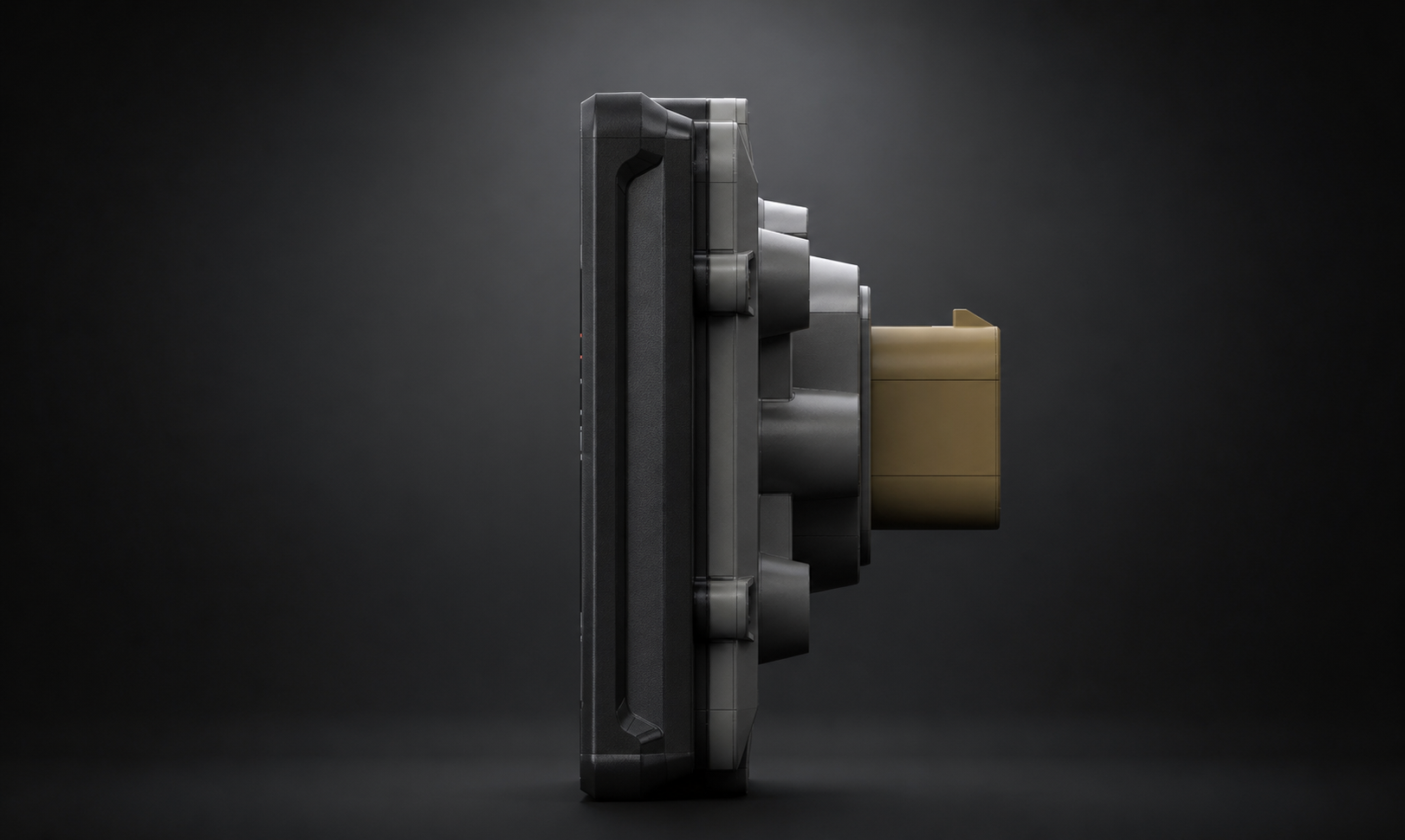

Dash-6.8 enclosure, rear view with the connector, 3D model
01

Display and enclosure

A 1280×480 IPS display with a 170° viewing angle and brightness up to 450 cd/m², working down to −30 °C. Rigid plastic enclosure with one sealed 14-pin connector on the back; the housing can be made fully sealed.

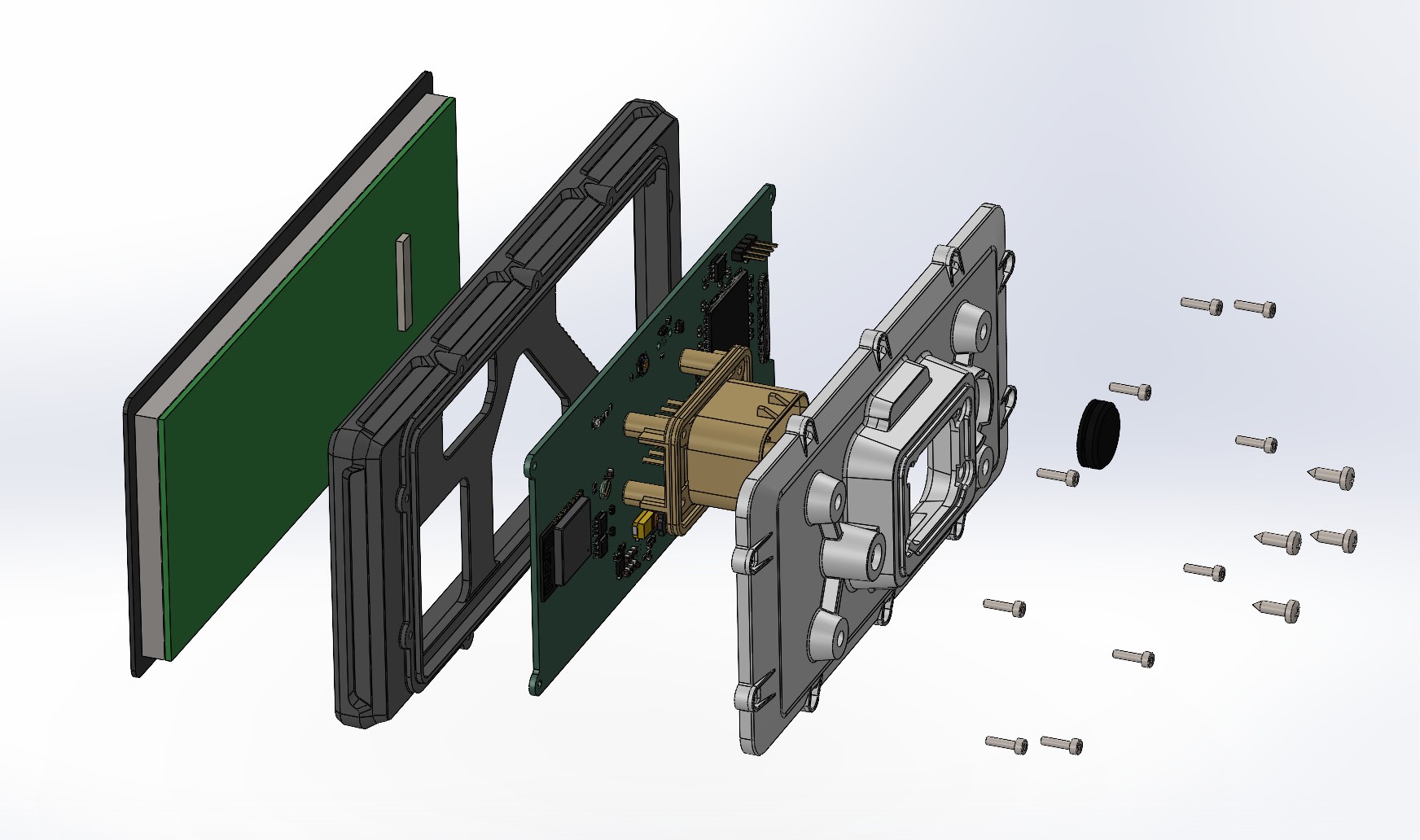

Dash-6.8 exploded view of the enclosure
02

Assembly

All parts are assembled with stainless A2 fasteners. A vent valve releases vapour and keeps moisture out of the housing. The panel is designed for overloads up to 4 G.

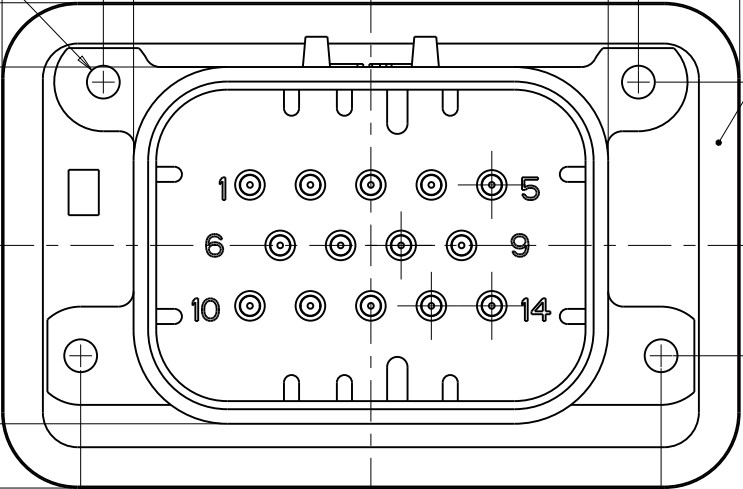

Connector pinout

One sealed 14-pin connector: power, CAN, analog and digital inputs, sensor supply and a switched 12 V output. Interactive pinout with the description of every pin.

Open the pinout
